Watch a short video HFFS Doypack Packing Machine

Horizontal Form Fill Seal machines are packaging machines in which filling, and sealing of a package take place on the same machine. Filling occurs through the open-top part of the pouch.We have different types of machine videos for different products.

welcome to consult

Technical parameter	DS-140S	DS-180DS	DS-180S	DS-240S	DS-280DS	DS-360DS
Pouch Size(mm)	60x90(Min.)140x200(Max.)	60x100(Min.)90x180(Max.)	90x110(Min.)180x260(Max.)	90x110(Min.)240x350(Max.)	90x110(Min.)140x260(Max.)	90x110(Min.)180x260(Max.)
Filing Capacity	300ml	150ml	1200ml	2500ml	600ml	1200ml
Packaging Capacity	40-60ppm	80-120ppm	40-60ppm	30-60ppm	80-120ppm	80-120ppm
Power	5.9kw	11.6kw	5.9kw	6.3kw	11.6kw	11.6kw
Air Consumption	140NL/min	300NL/min	200NL/min	400NL/min	400NL/min	400NL/min
Machine Dimensons(mm)	4480(L)1030(W)1450(H)	5800(L)1030(W)1450(H)	5400(L)1100(W)1400(H)	7000(L)1210(W)1400(H)	8000(L)1100(W)1400(H)	8700(L)1210(W)1400(H)
Weight	3500kg	3800kg	3600kg	4000kg	5000kg	6000kg

These are packaging machines that are suitable for different bag types. Click for more details.

Top Spout pouch filling machine Learn more

Shaped Doypack Packing Machine Learn more

Corner Spout Pouch Filling Machine Learn more

Front Spout Pouch Packing Machine Learn more

Zipper Stand Up Pouch Packing Machine Learn more

Standard Doypack Packing Machine Learn more

Product advantages:

In terms of automation: High degree of automation, equipped with Schneider or Siemens PLC control system.

In terms of function: Multi-functionality and strong compatibility. It can package multiple product simultaneously, has unique functions, and can professionally customize intelligent packaging solutions.

In terms of product: The whole body uses stainless steel 304 material, and the part in contact with food uses stainless steel 316 material, which is easy to clean, maintain, stable in operation and durable.

In terms of cost: The full servo film rolling design can save packaging material costs by 30%-50%.

In terms of finished product: The packaging finished product has a firm seal and is beautiful, enhancing the influence on the shelf.

In terms of filling: Multiple filling methods and support for ultra-clean filling.

Auxiliary filling device

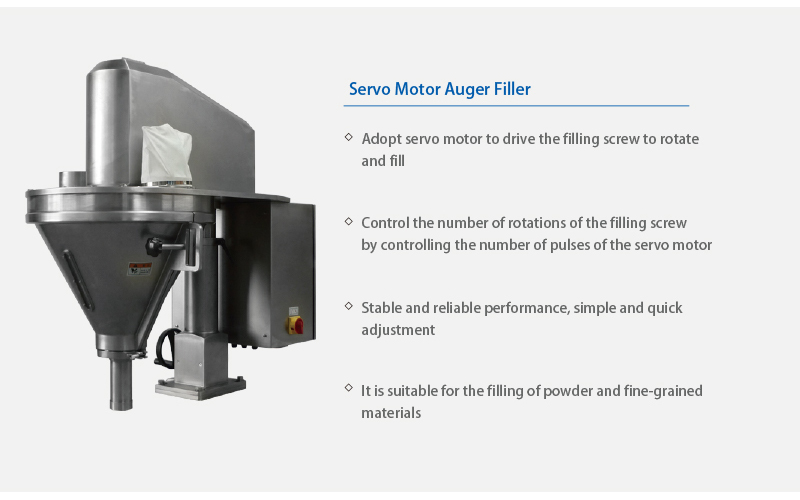

Servo Motor Auger Filler

Flow Meter

Hibar pump filler

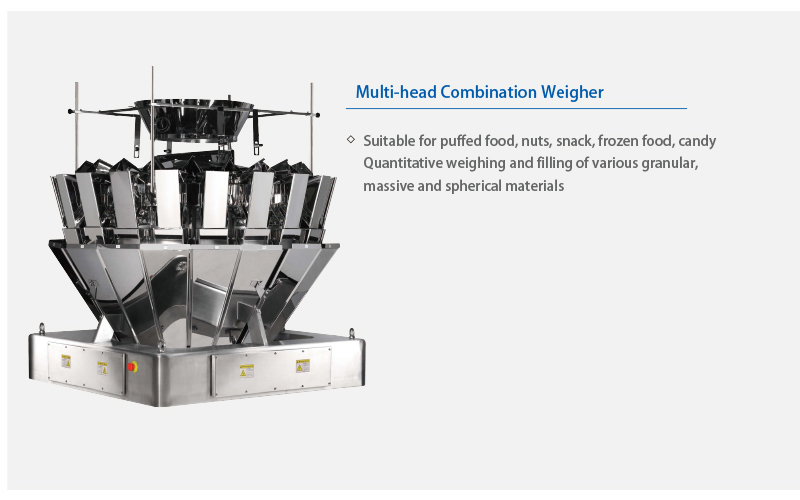

Multi-head Combination Weigher
